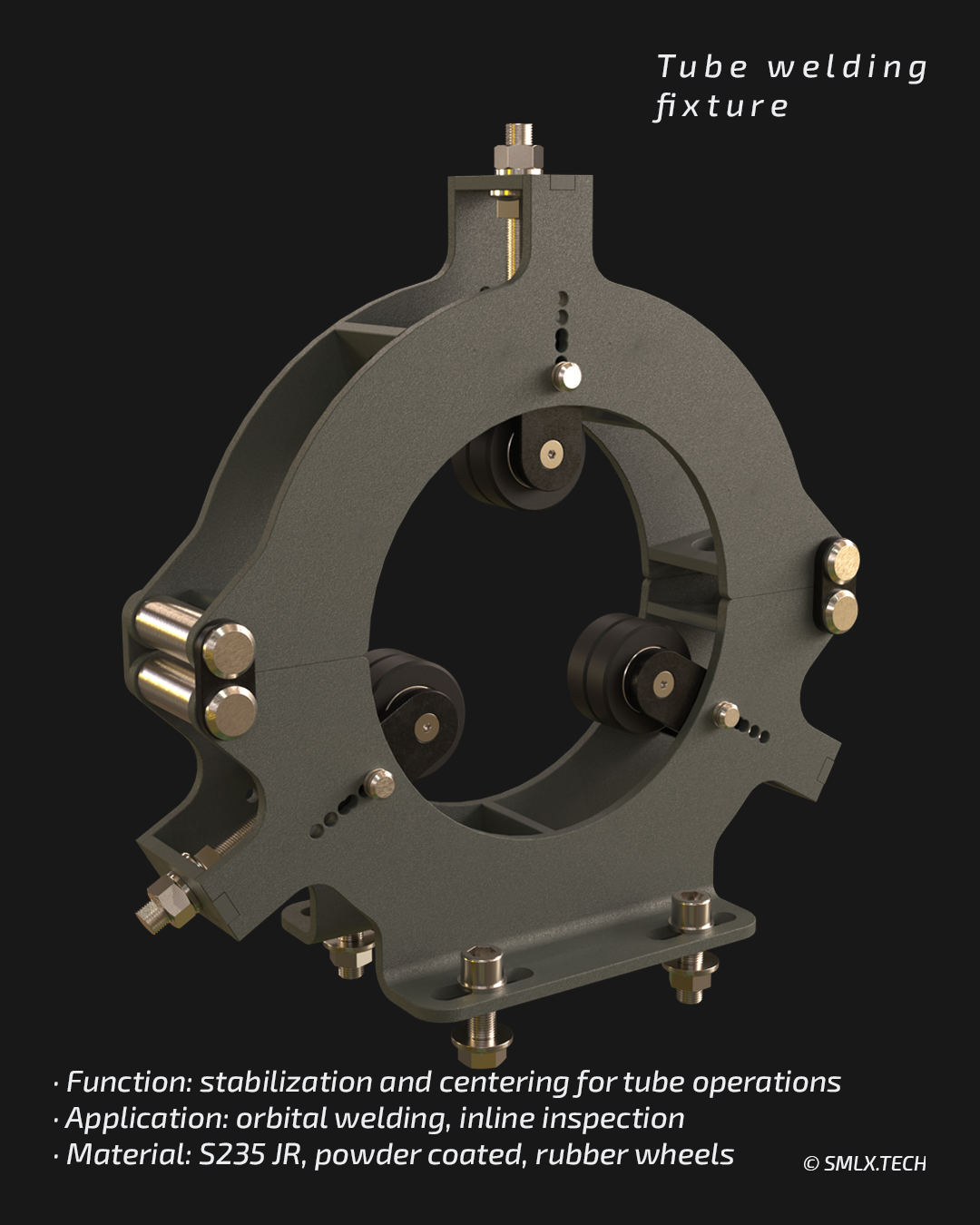

Robust fixture designed for radial stabilization of tubes during orbital welding. Sheet metal construction ensures low weight and high repeatability in automated environments.

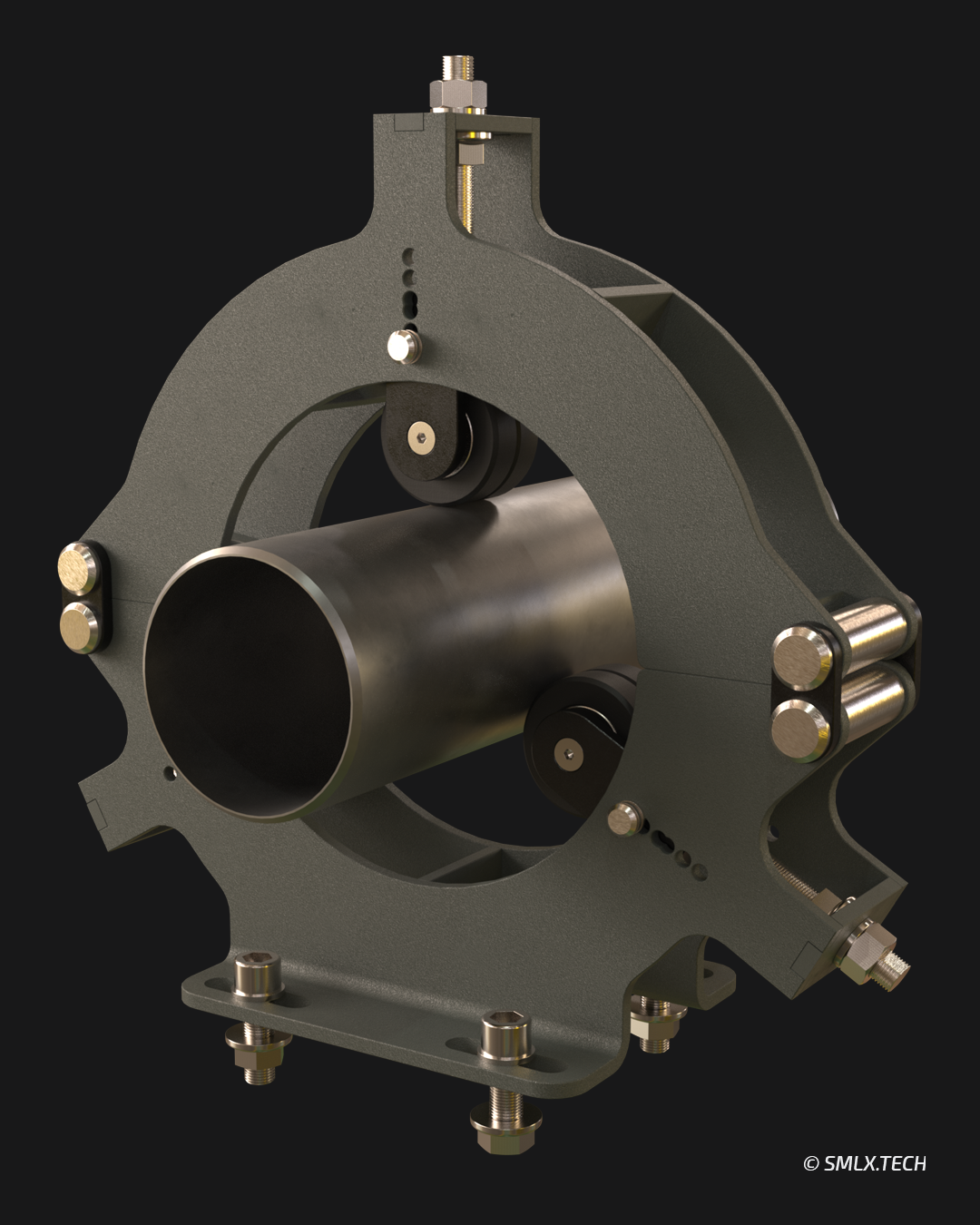

Configuration with steel tube in place. Fixture maintains axial alignment and prevents lateral drift during orbital weld passes.
Designed for integration into orbital welding stations, inline inspection modules, and rotary processing units.

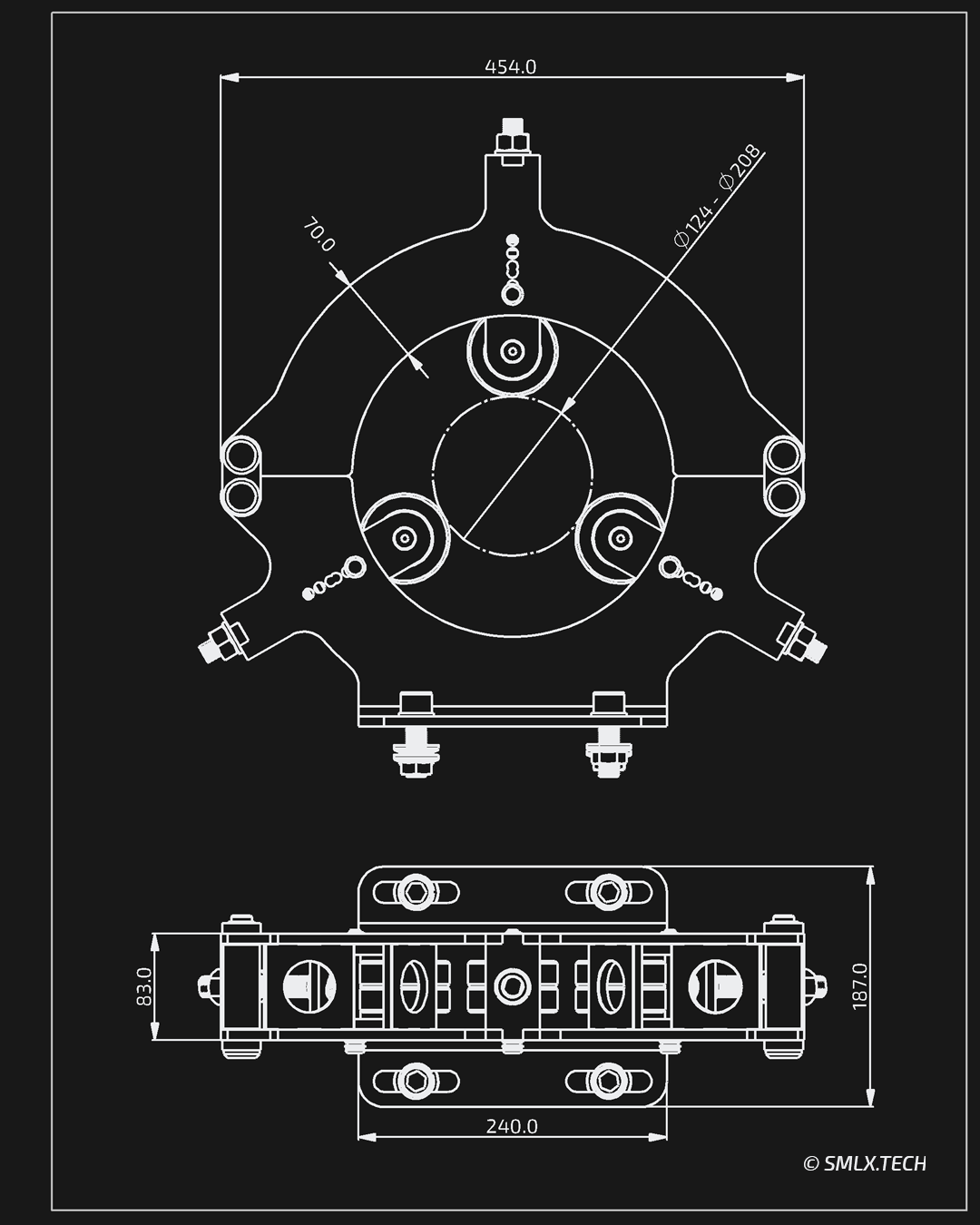

Compatible with modular systems handling tube diameters from 138–208 mm.
Compatible with modular systems handling tube diameters from 138–208 mm.

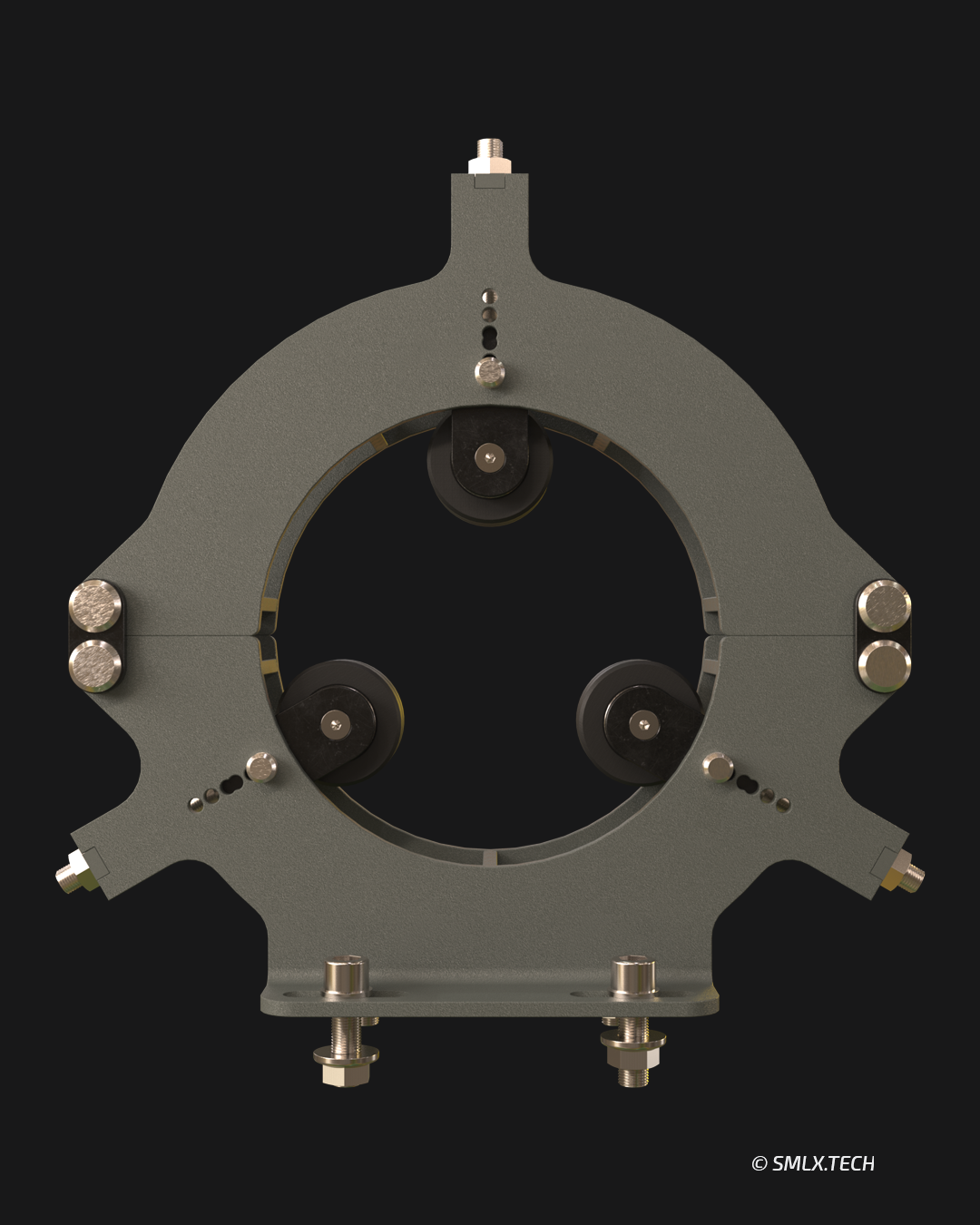

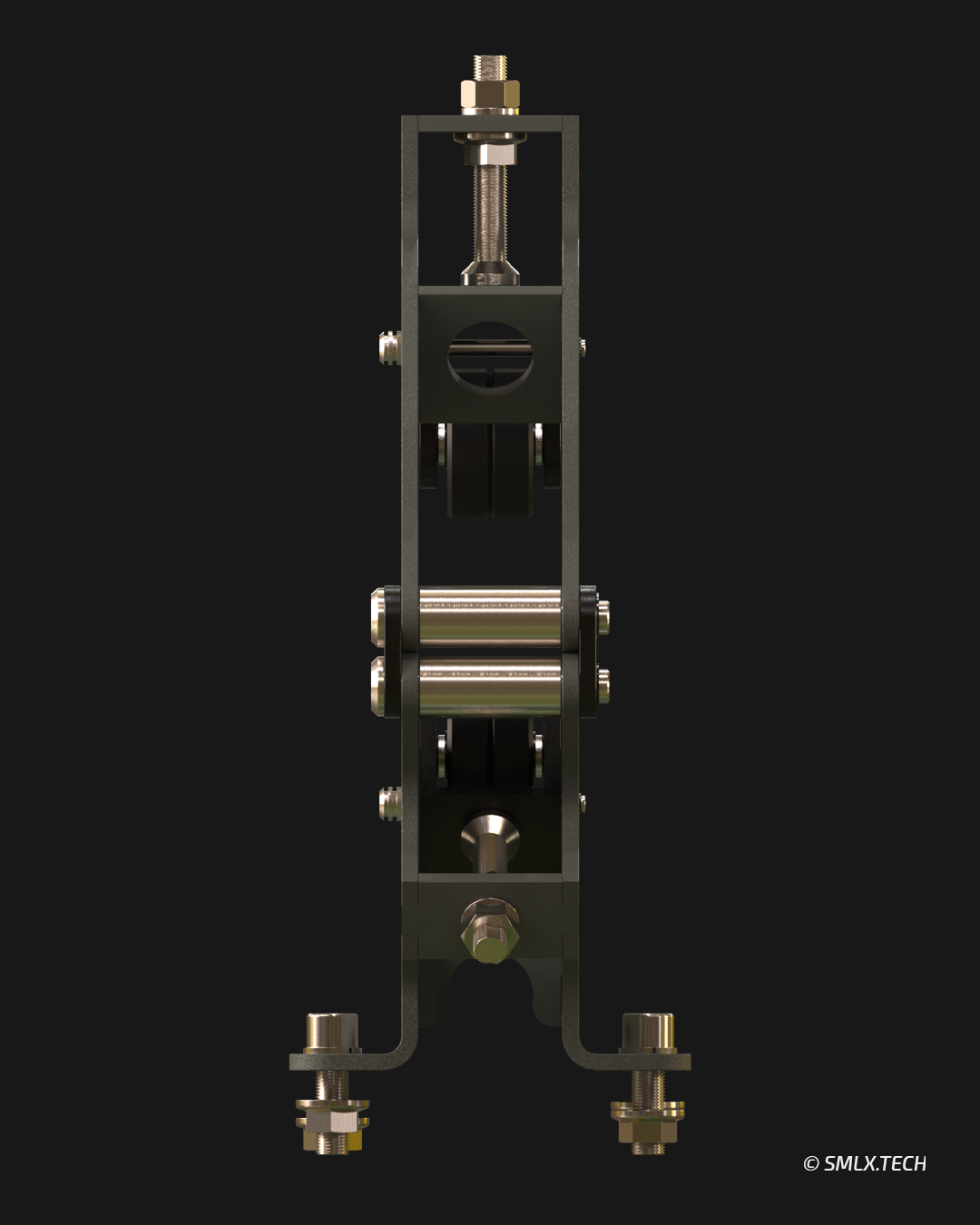

Low-profile design with reinforced baseplate. Mounting slots allow flexible positioning on linear rails or rotary tables.

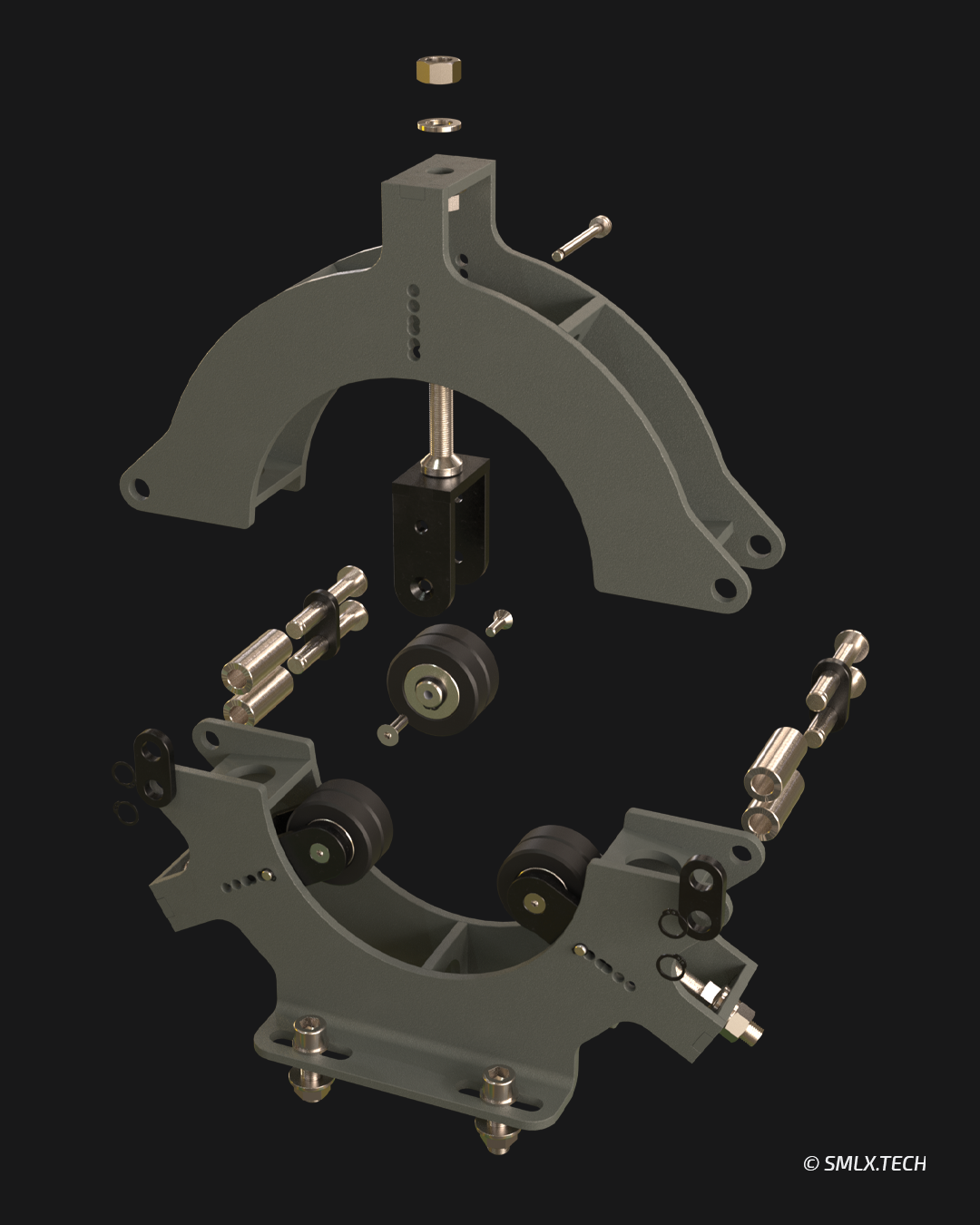

Designed for easy maintenance and part replacement in high-throughput environments.
